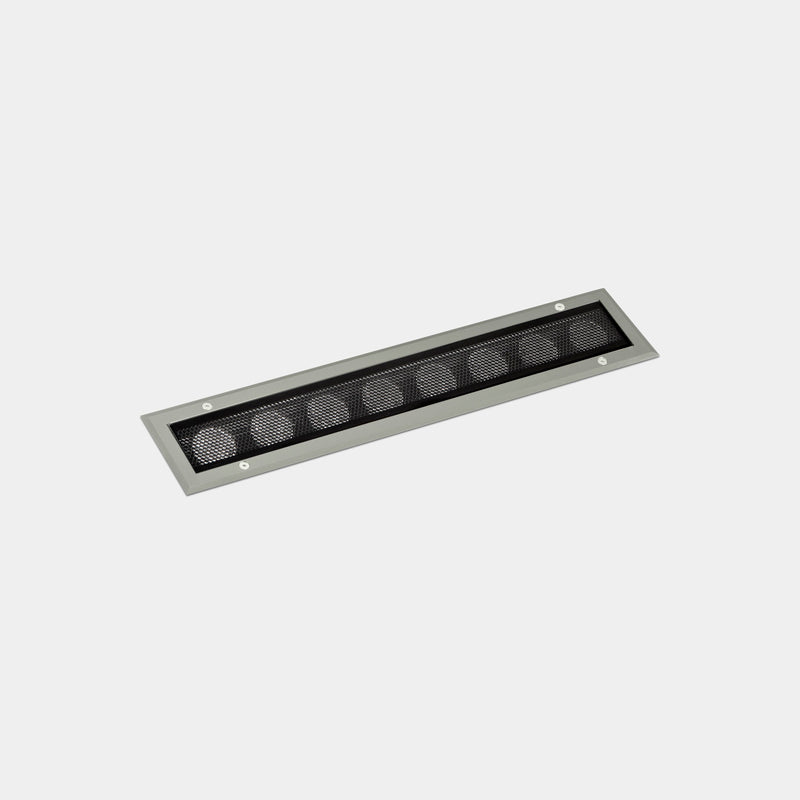

Cube Linear Recessed 500mm Linear Light

Lineal lighting system for outdoor use. Includes 2 cable outlets to facilitate chain mounting.

Light Source

• No. of lampholders or LEDs: 1
• Maximum power of light source: 22.3W
• Colour temperature: RGBW (4000k)
• Colour rendering index: 70
• Hours of life: 50.000h L80B20
• UGR: 8.5
• Real flux (lm): 1568
• Real lm/W: 64

Control & Regulation

• Voltage / frequency range: 220-240V/50-60Hz
• Voltage: 3
• Equipment included: Yes
• Total power: 24.5
• Power factor: 0.92
• Dimmable equipment included: DMX RDM

Finishes & Materials

• Structure material: Aluminium
• Structure finish: Grey
• Diffuser material: Tempered glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 4.63
• Product length (mm): 530
• Product width or diameter (mm): 115
• Product height (mm): 135

Technical Specifications

• Metres of cable included: 0.25
• Warranty: 5 Years
• IP: IP65-IP67
• IK: IK08
• Driver brand: TRIDONIC
• % de Flickering: +/- 1,5%
• Notes: Adjustable light source; Class 1

Download the LEDSC4 datasheet

Specifying for a project? Talk to our trade team →
