BD13-88X8T1DSZ5 Cube Linear Surface 1000mm Linear Light | 95.0W 4000K CRI80 DALI-2 / Push | Urban grey | BD13-88X8T1DSZ5
by LEDSC4
SKU BD13-88X8T1DSZ5
Original price
£865.32 Incl VAT
-
Original price
£865.32 Incl VAT
Original price
£865.32 Incl VAT
£865.32 Incl VAT
-
£865.32 Incl VAT
Current price
£865.32 Incl VAT

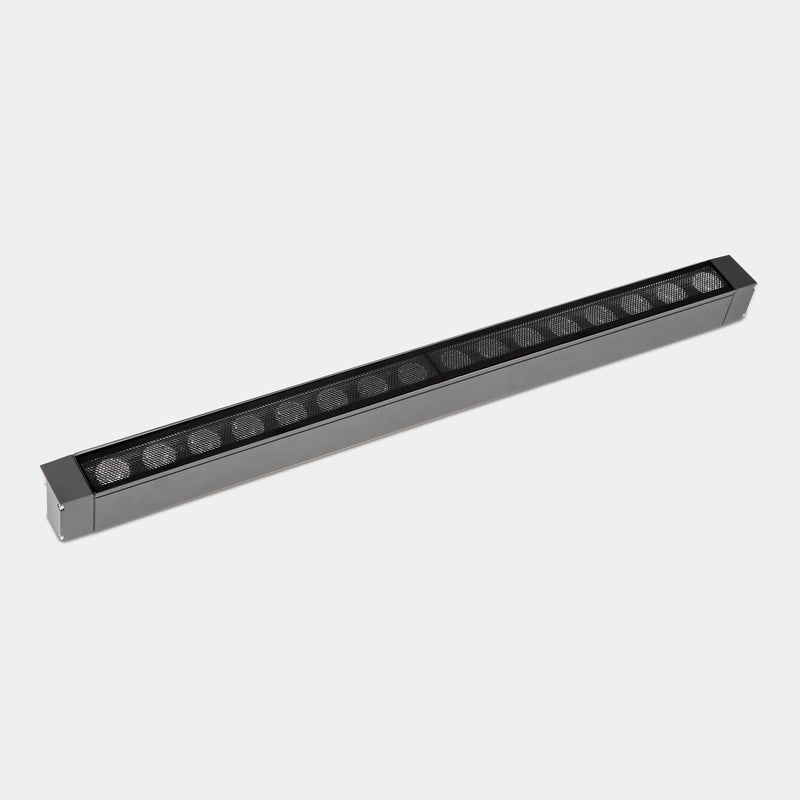

Cube Linear Surface 1000mm Linear Light
Lineal lighting system for outdoor use. Includes 2 cable outlets to facilitate chain mounting.
Light Source
- No. of lampholders or LEDs: 1
- LED brand: NICHIA
- Maximum power of light source: 88.4W
- Colour temperature: 4000K
- Colour rendering index: 80
- MacAdam Steps: 3
- Hours of life: 50.000h L80B20
- UGR: 11.2
- Photobiological risk: RG2
- Real flux (lm): 7110
- Real lm/W: 75
Control & Regulation
- Voltage / frequency range: 220-240V/50-60Hz
- Voltage: 3
- Equipment included: Yes
- Total power: 95
- Power factor: 0.95
- Dimmable equipment included: DALI-2/PUSH
Finishes & Materials
- Structure material: Aluminium
- Structure finish: Urban grey
- Diffuser material: Tempered glass
- Diffuser finish: Transparent
Dimensions
- Product net weight (Kg): 4.54
- Product length (mm): 1000
- Product height (mm): 65
- Product aperture (mm): 130
Technical Specifications
- Metres of cable included: 0.25
- Warranty: 5 Years
- IP: IP65
- IK: IK06
- Driver brand: OSRAM
- % de Flickering: +/- 3%
- Notes: Adjustable light source; Class 1
Specifying for a project? Talk to our trade team →
Additional information:
- Lumen Value: 7110lm
- CRI: 80
- Colour Temp: 4000K
- With Lamp: Yes
- Dimmable: Yes – DALI-2 / Push
- Region Voltage:
Availability:
In stock
