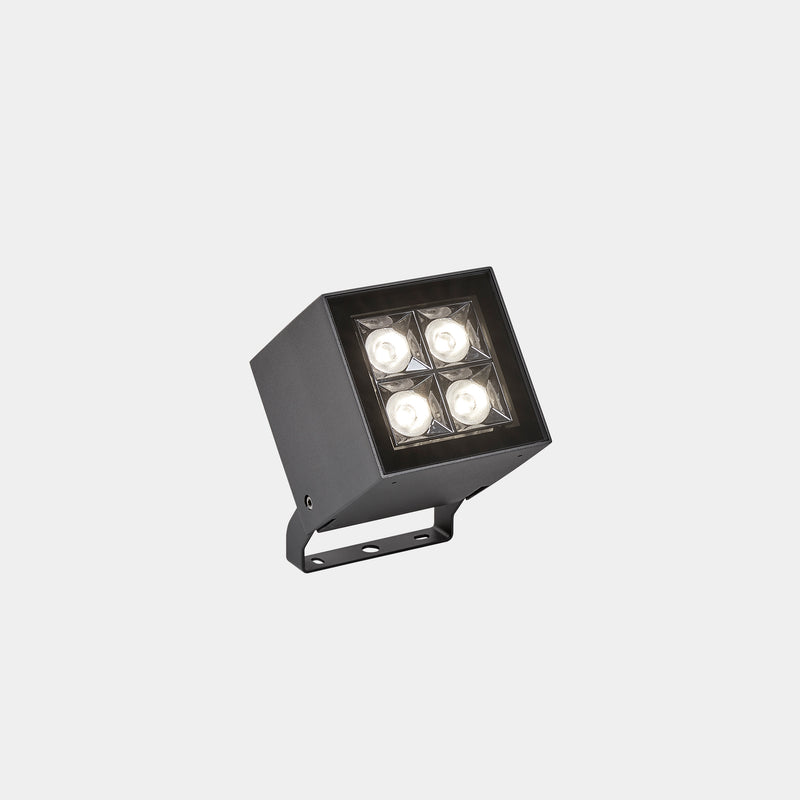

Cube Spot 4 LEDS Spotlight

Spotlight for outdoor use. For side lighting. Includes 2 cable outlets to facilitate chain mounting.

Light Source

• No. of lampholders or LEDs: 1
• Maximum power of light source: 19.6W
• Colour temperature: RGBW
• Colour rendering index: 80
• MacAdam Steps: 3
• Hours of life: 50.000h L80B20
• UGR: 9.4
• Photobiological risk: RG1
• Real flux (lm): 1434
• Real lm/W: 73

Control & Regulation

• Voltage / frequency range: 24
• Voltage: 3
• Equipment included: No, but it is needed
• Total power: 19.6
• Power factor: 1.00
• Dimmable equipment included: DMX RDM

Finishes & Materials

• Structure material: Aluminium
• Structure finish: Black
• Diffuser material: Glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 1.74
• Product width or diameter (mm): 110
• Product height (mm): 147
• Product aperture (mm): 110

Technical Specifications

• Metres of cable included: 0.2
• Warranty: 5 Years
• IP: IP66
• IK: IK07
• Notes: Adjustable light source; Class 3

Download the LEDSC4 datasheet
