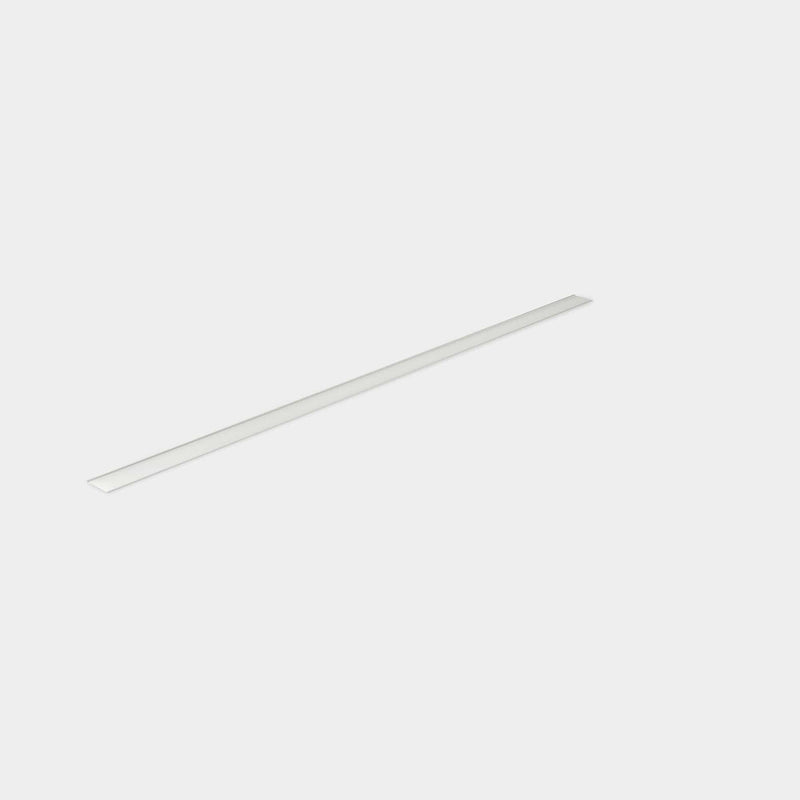

LEDSC4 Outdoor linear lighting system ip65/ip67 taglio recessed 32mm led 14.7w 3000k anodised 1 55-E004-M3-CL
Taglio Recessed 32mm
linear lighting system for outdoor use.
For uplighting. Specially designed to conceal all mounting screws. Includes side elastic bands to help extract the LED module in the event of breakdown, quick connectors, flush-mounting box and 3 panels to guarantee and ensure perfect union between connected luminaires. Includes 2 cable outlets to facilitate chain mounting. Metres of cable included: 0.15. Structure material: Aluminium. Structure finish: Anodised. Diffuser material: Methacrylate. Diffuser finish: Opal. UV protection. Warranty: 5 Years. Max. temperature: 50ºC.
Product net weight (Kg): 2.18
Product length (mm): 1004
Product width or diameter (mm): 65
Product height (mm): 62
Ø of the hole for recessing (mm): 1004x65
Class 3. IP: IP65/IP67. IK: IK10. LED. No. of lampholders or LEDs: 168. LED brand: NICHIA. Maximum power of light source: 14.7W. Colour temperature: 3000K. Colour rendering index: 80. MacAdam Steps: 3. Maximum diameter of luminaire bulb: 50.000h L80B20. UGR: 19.8. Real flux (lm): 1407. Real lm/W: 96. Voltage: 3. IMPORTANT: Additional separate equipment needed for full operation. Ask for details.. Total power: 14.7.
Delivery to UK in 21 days approx.
- Length: 1004mm
- Width: 65mm
- Lumen Value: 1407
- CRI: 80
- Colour Temp: LED warm-white 3000K
- With Lamp: Yes
