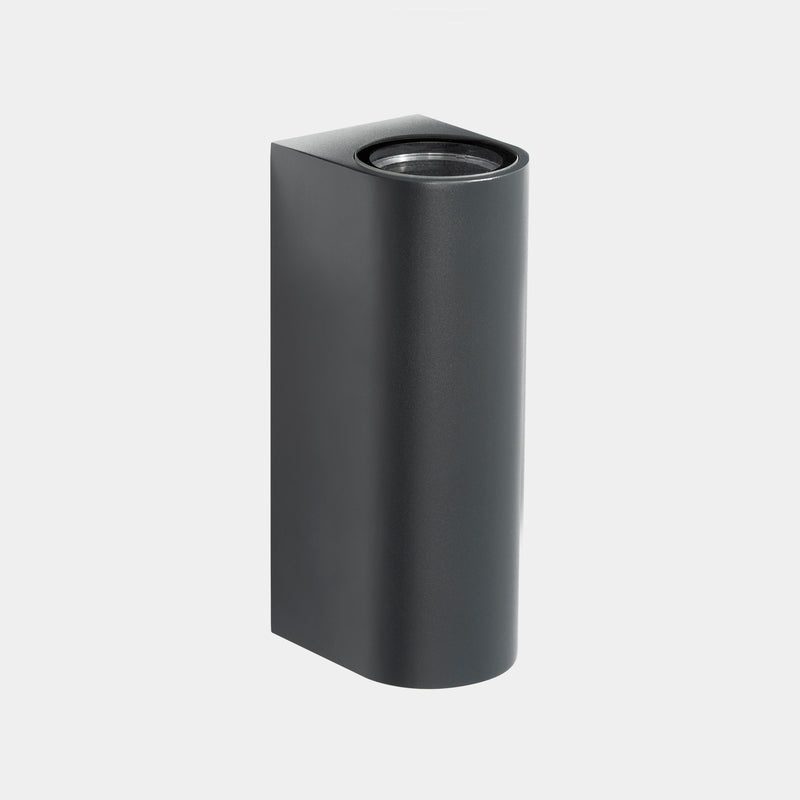

Max Big Double Emission Wall Light

Surface-mounted wall light for outdoor use. Includes 2 cable outlets to facilitate chain mounting.

Light Source

• No. of lampholders or LEDs: 1
• LED brand: CREE
• Maximum power of light source: 31.5W
• Colour temperature: 2700K
• Colour rendering index: 92
• MacAdam Steps: 2
• Hours of life: 50.000h L80B20
• UGR: 14.3
• Photobiological risk: RG1
• Real flux (lm): 3367
• Real lm/W: 96

Control & Regulation

• Voltage / frequency range: 220-240V/50-60Hz
• Voltage: 36
• Equipment included: Yes
• Total power: 35
• Power factor: 0.96
• Dimmable equipment included: DALI-2/PUSH

Finishes & Materials

• Structure material: Aluminium
• Structure finish: Grey
• Diffuser material: Glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 3.17
• Product width or diameter (mm): 92
• Product height (mm): 280
• Product aperture (mm): 113

Technical Specifications

• Warranty: 5 Years
• IP: IP66
• IK: IK10
• Driver brand: TRIDONIC
• % de Flickering: +/- 5%
• Notes: UV protection; Class 1

Download the LEDSC4 datasheet
