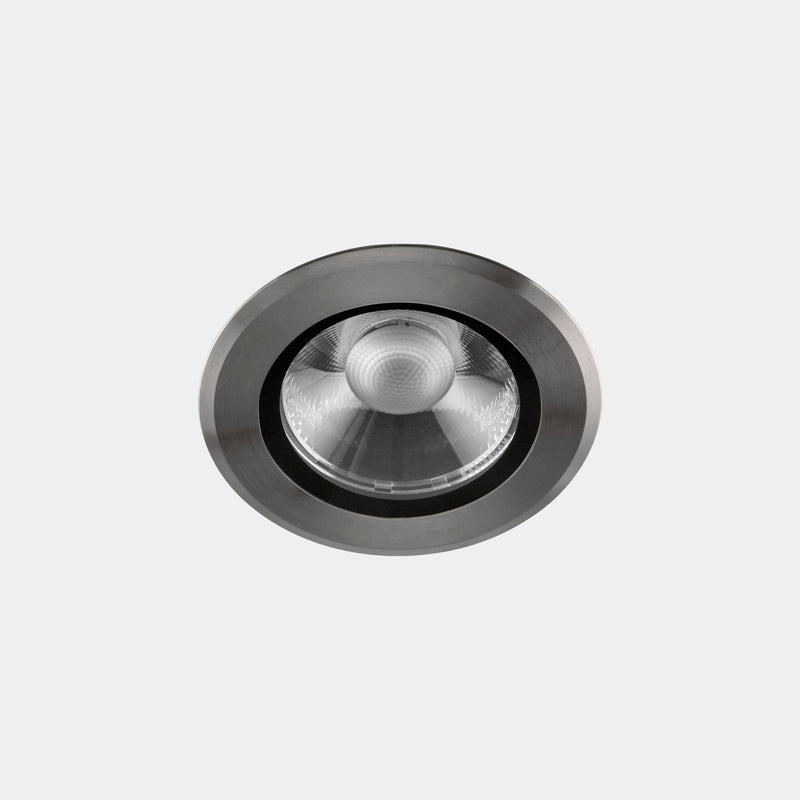

Max Big Round Recessed Downlight

Recessed ceiling lights for outdoor use.

Light Source

• No. of lampholders or LEDs: 1
• LED brand: CREE
• Maximum power of light source: 17.3W
• Colour temperature: 4000K
• Colour rendering index: 92
• MacAdam Steps: 2
• Hours of life: 50.000h L80B20
• UGR: 3.0
• Photobiological risk: RG2
• Real flux (lm): 463
• Real lm/W: 27

Control & Regulation

• Voltage: 36
• Equipment included: No, but it is needed
• Total power: 17.3

Finishes & Materials

• Structure material: Aluminium, Stainless steel AISI316
• Structure finish: Gun Metal PVD
• Diffuser material: Glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 1.09
• Product width or diameter (mm): 110
• Product height (mm): 100
• Ø of the hole for recessing (mm): 95
• Permitted ceiling thickness: 0-70

Technical Specifications

• Metres of cable included: 1
• Warranty: 5 Years
• IP: IP66
• IK: IK10
• Notes: UV protection; Class 3; Luminaire not suitable for coating with insulation materials
