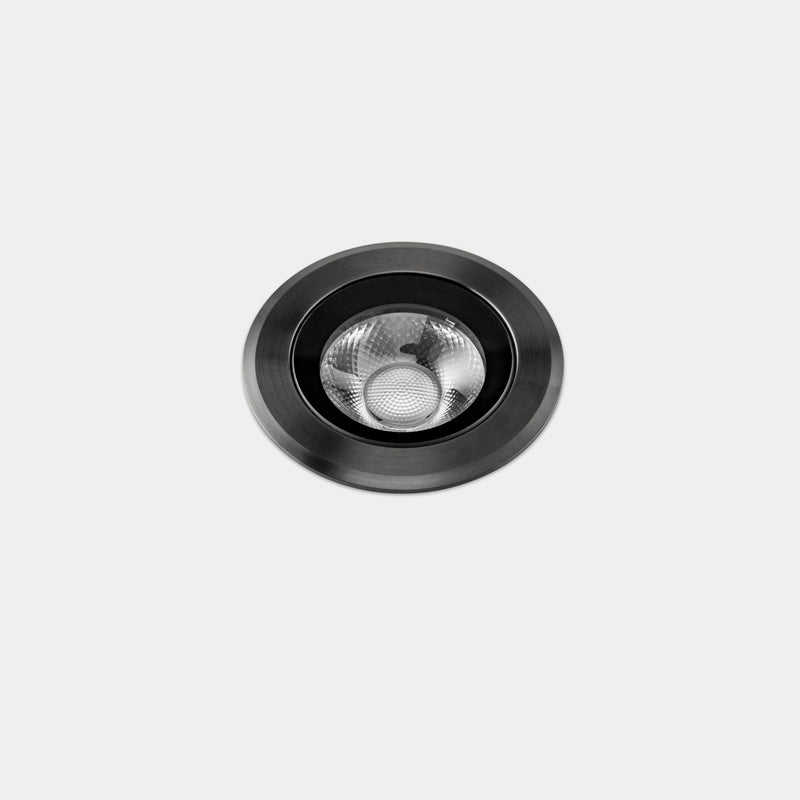

Max Medium Round Trim Recessed Uplight

Recessed uplighting for outdoor use.

Light Source

• No. of lampholders or LEDs: 1
• LED brand: CREE
• Maximum power of light source: 6.5W
• Colour temperature: 2200K
• Colour rendering index: 80
• MacAdam Steps: 3
• Hours of life: 50.000h L80B20
• UGR: 17.2
• Photobiological risk: RG2
• Real flux (lm): 586
• Real lm/W: 63

Control & Regulation

• Voltage / frequency range: 100-240V/50-60Hz
• Voltage: 18
• Equipment included: Yes
• Total power: 8.5
• Dimmable equipment included: ON-OFF

Finishes & Materials

• Structure material: Aluminium, Stainless steel AISI316
• Structure finish: Gun Metal PVD
• Diffuser material: Glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 0.58
• Product width or diameter (mm): 75
• Product height (mm): 55
• Ø of the hole for recessing (mm): 60

Technical Specifications

• Metres of cable included: 1
• Warranty: 5 Years
• IP: IP66-IP67
• IK: IK10
• Driver brand: TCI
• % de Flickering: <3%
• Notes: UV protection; Class 2
