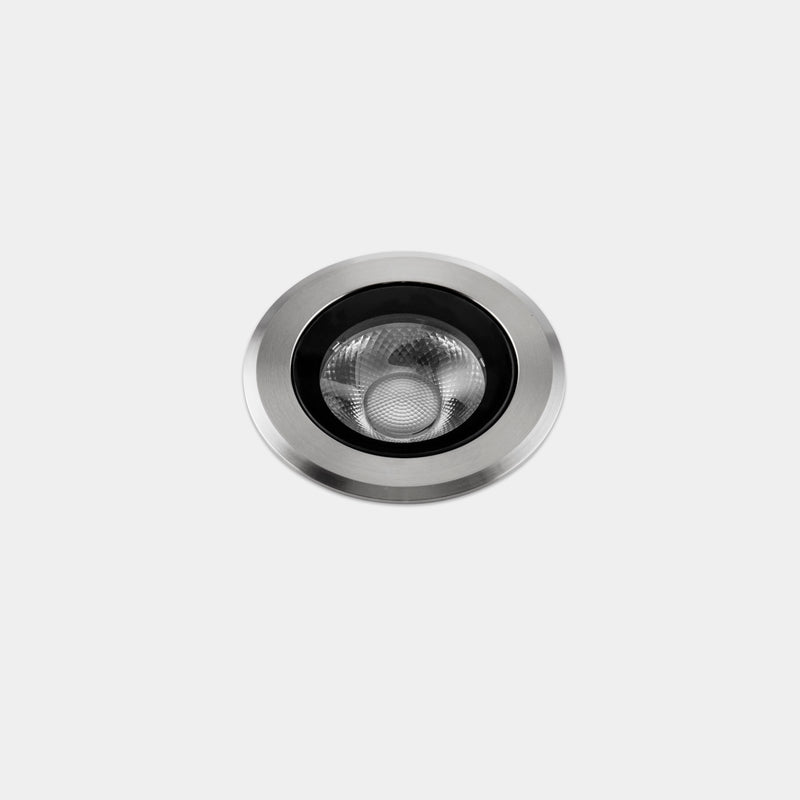

Max Medium Round Trim Recessed Uplight

Recessed uplighting for outdoor use. For uplighting.

Light Source

• No. of lampholders or LEDs: 1
• LED brand: CREE
• Maximum power of light source: 6.5W
• Colour temperature: 4000K
• Colour rendering index: 92
• MacAdam Steps: 2
• Hours of life: 50.000h L80B20
• UGR: 17.3
• Photobiological risk: RG2
• Real flux (lm): 614
• Real lm/W: 66

Control & Regulation

• Voltage / frequency range: 100-240V/50-60Hz
• Voltage: 18
• Equipment included: Yes
• Total power: 8.5
• Dimmable equipment included: ON-OFF

Finishes & Materials

• Structure material: Stainless steel AISI316, Aluminium
• Structure finish: AISI 316 stainless steel
• Diffuser material: Glass
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 0.51
• Product width or diameter (mm): 75
• Product height (mm): 55
• Ø of the hole for recessing (mm): 60

Technical Specifications

• Metres of cable included: 1
• Warranty: 5 Years
• Glow wire test: 850
• IP: IP66-IP67
• IK: IK10
• Driver brand: TCI
• % de Flickering: <3%
• Notes: UV protection; Class 2

Download the LEDSC4 datasheet

Specifying for a project? Talk to our trade team →
