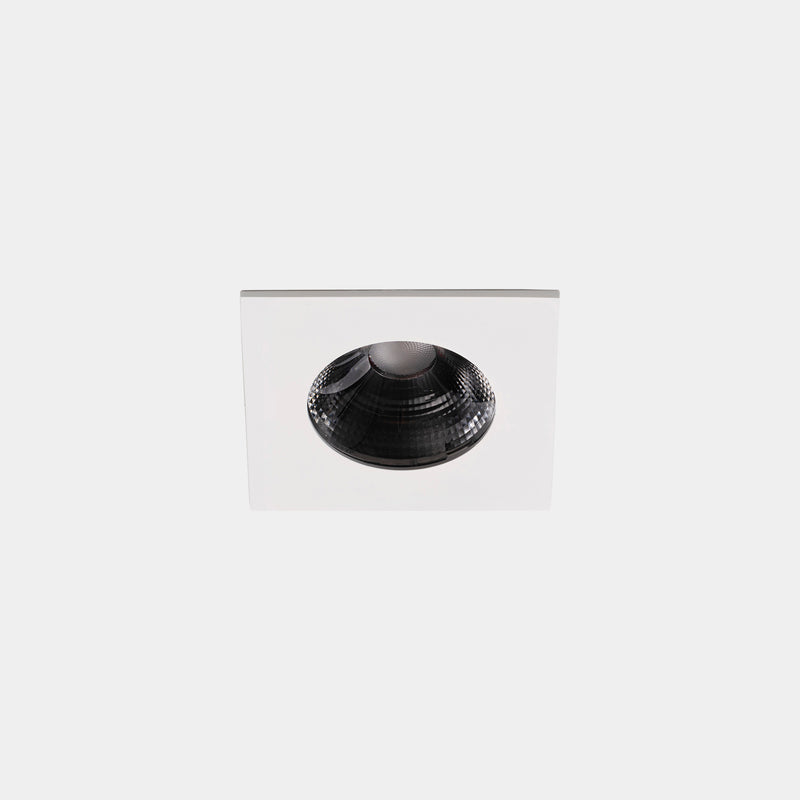

Play Flat Square Fixed Recessed Downlight

Recessed ceiling lights for indoor use.

Light Source

• No. of lampholders or LEDs: 1
• LED brand: BRIDGELUX
• Maximum power of light source: 12.5W
• Colour temperature: TW 2700K-6500K
• Colour rendering index: 92
• MacAdam Steps: 3
• Hours of life: 50.000h L80B20
• UGR: 13.5
• Photobiological risk: RG1
• Real flux (lm): 1354
• Real lm/W: 93

Control & Regulation

• Voltage / frequency range: 220-240V/50-60Hz
• Voltage: 36
• Equipment included: Yes
• Total power: 14.5
• Dimmable equipment included: DALI-2/PUSH

Finishes & Materials

• Structure material: Aluminium
• Structure finish: White
• Diffuser material: Methacrylate
• Diffuser finish: Transparent

Dimensions

• Product net weight (Kg): 0.25
• Product length (mm): 65
• Product width or diameter (mm): 65
• Product height (mm): 57
• Ø of the hole for recessing (mm): 58
• Permitted ceiling thickness: 0-13

Technical Specifications

• Warranty: 5 Years
• IP: IN IP20 / OUT IP54
• % de Flickering: +/- 3%
• Notes: Class 2; Luminaire not suitable for coating with insulation materials

Download the LEDSC4 datasheet
