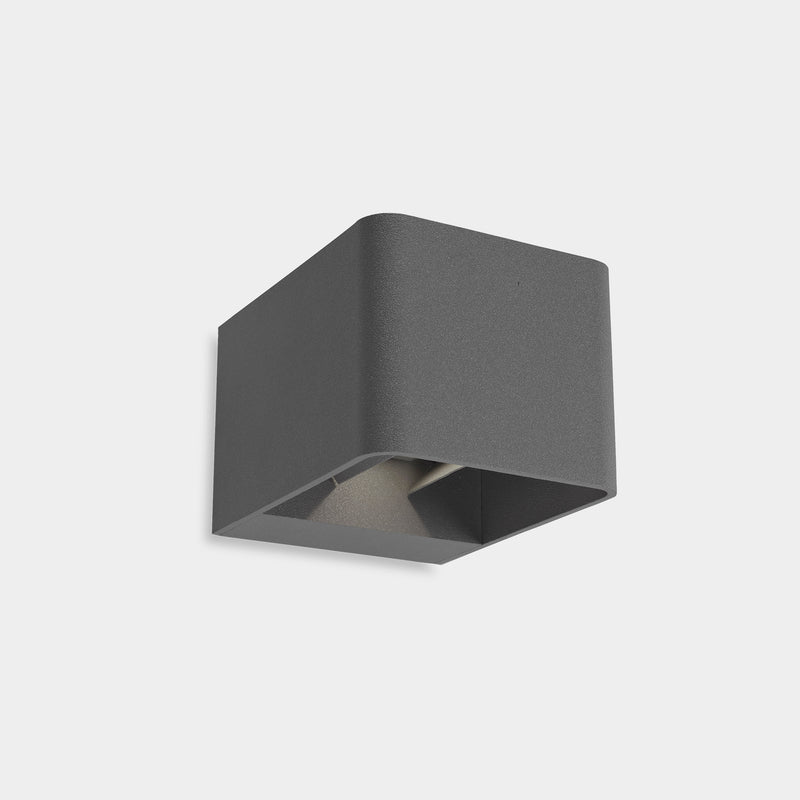

Wilson Square Wall Light

Surface-mounted wall light for outdoor use. For uplighting and downlighting.

Light Source

• No. of lampholders or LEDs: 1
• Maximum power of light source: 9W
• Colour temperature: 2700K
• Colour rendering index: 80
• MacAdam Steps: 3
• Hours of life: 50.000h L80B20
• UGR: 14.4
• Photobiological risk: RG0
• Real flux (lm): 602
• Nominal flux (lm): 855
• Real lm/W: 59

Control & Regulation

• Voltage / frequency range: 100-240V/50-60Hz
• Voltage: 3
• Equipment included: Yes
• Total power: 10.2
• Power factor: 0.90
• Dimmable equipment included: ON-OFF

Finishes & Materials

• Structure material: Aluminium
• Structure finish: Grey
• Diffuser material: Glass
• Diffuser finish: Matt

Dimensions

• Product net weight (Kg): 0.98
• Product width or diameter (mm): 110
• Product height (mm): 90
• Product aperture (mm): 126

Technical Specifications

• Warranty: 5 Years
• Glow wire test: 850
• IP: IP65
• IK: IK08
• Notes: UV protection; Class 1; Multi-voltage equipment included
