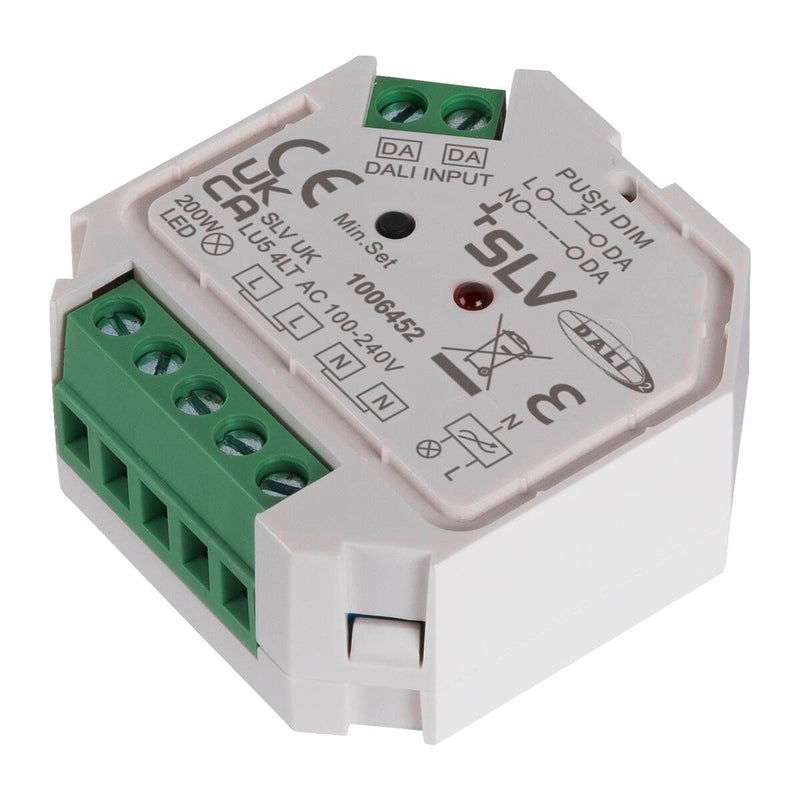

Trailing-edge phase dimmer with DALI control input

The dimmer converter is a phase-cut dimmer with DALI and push control interface.
TECHNICAL DATA

Colour white
Material Polycarbonate (PC)
Dimmable Yes

Dimming technology Dimmable Universal DALI
Protection category II

IP Code IP 20
Assembly Recessed
Assembly details Wall
Length 46 mm
Width 45 mm
Height 20 mm
Output voltage 100-240V
Primary nominal voltage 100-240V ~50/60Hz
Output current 1800 mA
Operational cycles 0
Ambient temperature -20 - 50 °C

Net weight 30 g
Output Wattage to 200 W
